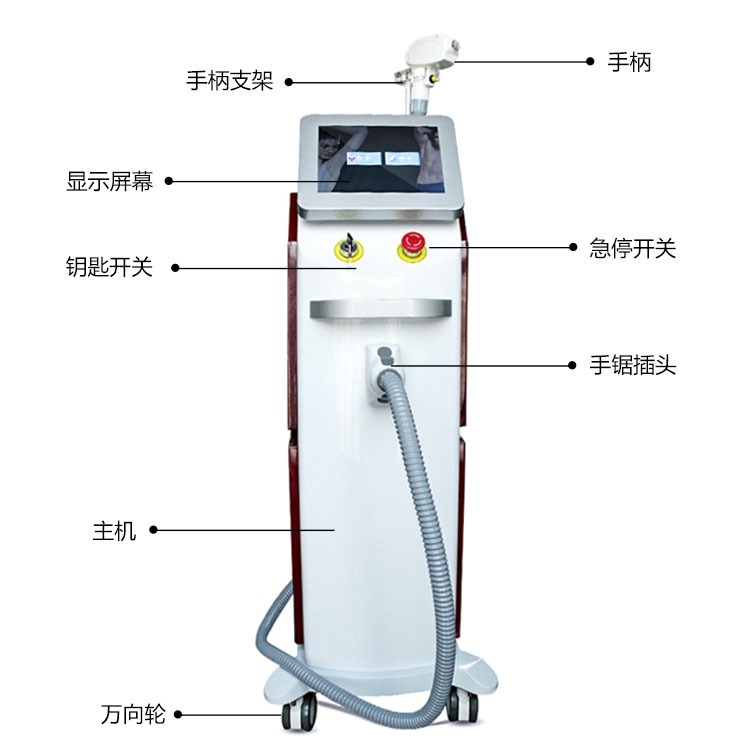

Vertical 808 front
Vertical 808 back

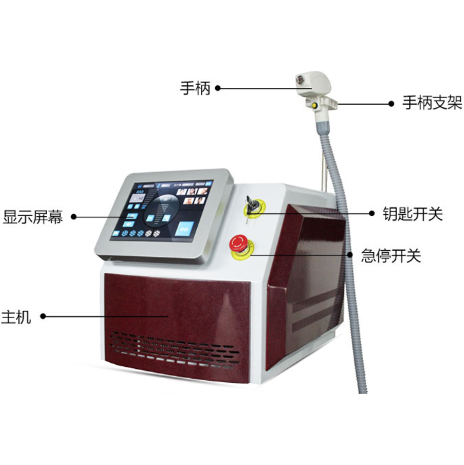

Front of platform 808

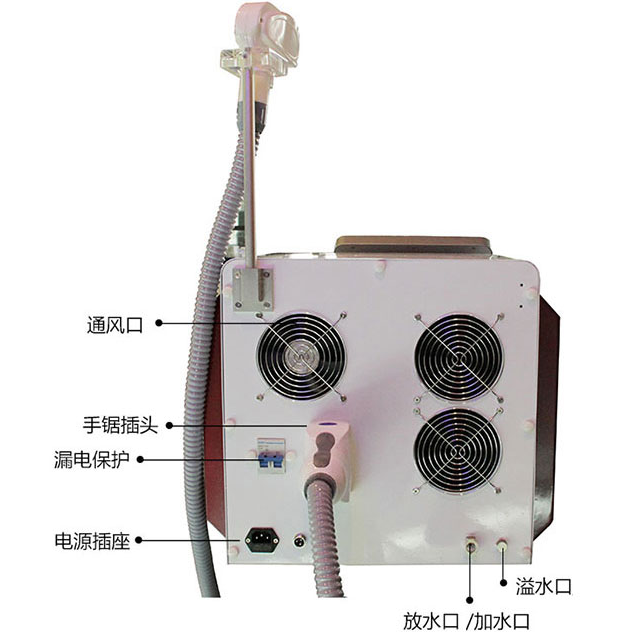

Back of desktop 808
Product packing list
1)Foot pedal
2) Instrument
3) Handle
4) Key
5) Water filling pipe, funnel
6) Water discharge, overflow plug
7) Power cord
8) Safety glasses
9) A copy of the instruction manual
10) CBC
11) Screw
12) Fuse, Rubber ring
13) Handle bracket
14) Cold gel
15) Warranty card
16) Laser glasses

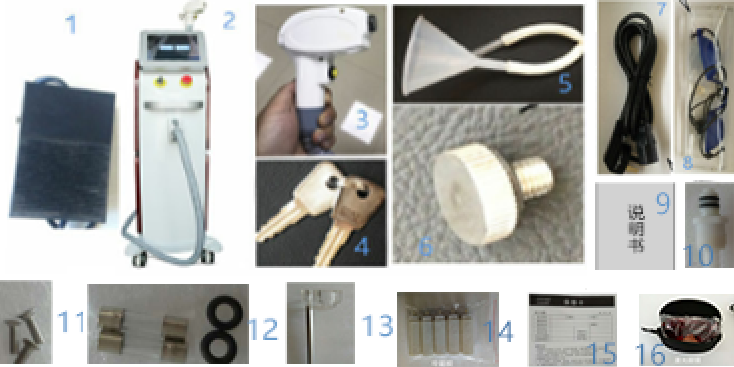

Vertical 808 Checklist

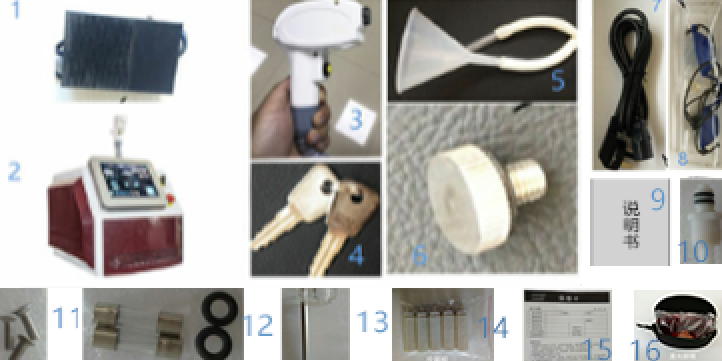

Desktop 808 Checklist
Optical Equipment Safety
1) It is forbidden to wear reflectors such as jewelry, watches or glasses to prevent reflected laser light.
2) Lasers may damage eyes and cause skin burns. Necessary protective measures should be taken during use: all personnel should wear goggles when using the machine, and customers should wear eye shields of opaque material that can completely block light. Even if the operator is wearing goggles, do not look directly at the laser or its reflected light from the operating handle.
3) When the machine is turned on, no part of the body should face the light outlet of the operating handle.
4) Do not use the operating handle outside the scope of use specified in this manual, and do not emit lasers outside the operating area.
5) The closed light guide crystal transmits the laser light to the skin, and the laser light can only be emitted from the front face of the light guide crystal.
6) Excessive light energy emitted to the operation site may cause skin damage.
7) The operating handle should be placed on the handle hanger when not in use, and the operating handle should point to the operated part when in use.
8) Please restore the system to the standby state after one hair removal operation to avoid unnecessary damage caused by unintentional light emission.
9) When testing light, please light to an open space, floor or ceiling, and do not light to mirror objects. The light guide crystal and cooling head should always be kept clean, and do not allow cold gel to penetrate into the inside of the operating handle.
